IS 2629 HDG> 86µ Zinc Coating
ISO 9001:2015Quality Certified
Direct PlantDanapur, Patna
Outdoor Fitness & Gym Equipment• RS-GYM-01
Outdoor Air Walker / Cross Trainer
Heavy-duty outdoor air walker / cross trainer designed for cardiovascular fitness in public parks, smart cities, and residential complexes.
COMMERCIAL POLICY Direct Wholesale & Tender PricingCustomization available according to project drawings
Request QuotationKEY HIGHLIGHTS & ADVANTAGES
Heavy-gauge B-Class GI Pipe construction (114mm main column, 3.2mm wall thickness)
Double-sealed Japanese ball bearing pivot mechanism for smooth, friction-free swing
Non-slip reinforced footrests with drainage slots to prevent water accumulation
Anti-corrosive electrostatic polyester powder coating (>120 microns) for all-weather outdoor durability
Anti-tamper galvanized fasteners with protective nylon dome caps
Dual-user configuration enabling two people to exercise simultaneously
RECOMMENDED APPLICATIONS
Municipal and Smart City Public ParksResidential Societies and Gated CommunitiesSports Academies and School / University GroundsResort, Hotel, and Corporate Wellness LawnsRural Health & Recreation Centers
MANUFACTURING PARAMETERS
Technical Specifications
| Specification / Parameter | Standard Engineering Value |
|---|---|
| Equipment Type | Outdoor Air Walker / Cross Trainer |
| User Capacity | Dual User (2 Persons Simultaneous) |
| Main Mast Pipe | 114 mm OD Heavy ERW/GI Steel Pipe |
| Wall Thickness | 3.2 mm |
| Bearing Assembly | Double-Sealed High-Load Japanese Deep Groove Ball Bearings |
| Footrest Material | Heavy-Duty Anti-Slip Embossed Aluminum / Rubberized Metal |
| Surface Treatment | Zinc-Rich Epoxy Primer + UV-Resistant Pure Polyester Powder Coating |
| Coating Thickness | >120 Microns (Salt Spray Tested >500 Hours) |
| Base Plate & Anchor | 300x300x12 mm Base Plate with M16 Galvanized J-Bolts |
| Max User Weight | 150 kg per Station |
Project Note: Contact RAJ SALES directly for custom RAL powder coat colors, foundation anchors, and bulk tender pricing.
Contact Engineering TeamEXPLORE MORE
View Full CatalogueRelated Infrastructure Products

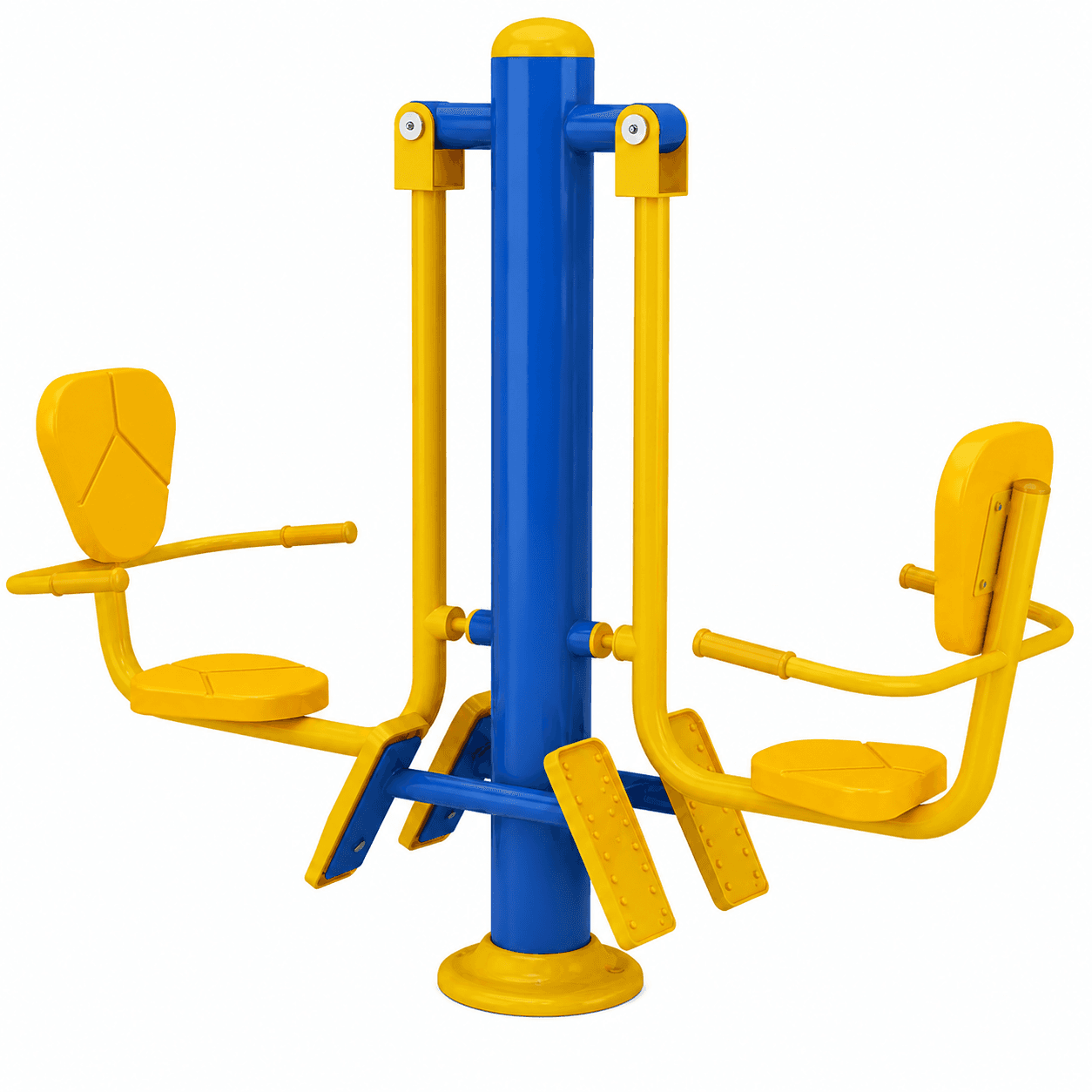

Outdoor Open Gym
